Closed-Loop Stepper Controller Options: Which Architecture Should You Choose?

[Hero image: add product lineup or architecture comparison graphic]

The closed-loop stepper landscape has grown well beyond the classic external driver wired to a separate encoder. Today you can choose from at least five distinct architectures — each with its own trade-offs in cost, wiring complexity, reuse of existing hardware, and control flexibility.

Whether you are building a single-axis lab fixture or a multi-axis robot, understanding these options will help you avoid overpaying for capability you don't need — or under-specifying a machine that can't recover from missed steps under load.

This guide walks through six architectures, from the cheapest monitoring-only approach up to full servo replacement, and ends with a decision flowchart to match your project to the right category.

---

1. Encoder-Only Monitoring

What it is: You add a rotary encoder (magnetic or optical) to a standard open-loop stepper, but the encoder talks only to your host controller — not to the stepper driver. The driver continues to run open-loop. The host compares commanded position against actual position and raises an alarm (or pauses the machine) when the error exceeds a threshold.

Typical hardware: AS5600 / AS5048A magnetic encoder breakout, AMT102-V capacitive encoder, or an optical quadrature encoder, read by an MCU or PLC that also sends step/direction pulses.

Pros:

• Lowest cost — often under ₹500–1,000 per axis in components
• Simple to retrofit onto existing open-loop machines
• No change to the stepper driver or wiring

Cons:

• Detection only — no real-time correction
• Machine must stop or re-home after a fault; no graceful recovery mid-move
• Adds latency: the host loop must poll the encoder, compare, and decide

Best for: Low-speed machines where missed steps are rare and catastrophic damage is unlikely — pick-and-place that touches off on a limit switch every cycle, simple rotary indexers, or hobby projects where cost is the primary constraint.

---

2. External Closed-Loop Driver Kit

What it is: A standalone driver that accepts step/direction pulses (or pulse/direction + enable) like any traditional stepper driver, but also reads an encoder attached to the motor. The driver handles the position loop internally — if the motor lags behind the commanded position, the driver increases current or adjusts phase angle to catch up. An alarm output signals persistent faults to the host.

Typical hardware:

• Leadshine CL57T / CL86T — widely used in industrial CNC and automation; NEMA 23/24/34 support
• JMC HSD57 / HSD86 — similar architecture, popular in Asia-Pacific markets
• StepperOnline CL-series — budget-friendly clones with mixed firmware quality

Pros:

• Drop-in replacement for open-loop drivers — same step/dir interface
• Internal closed-loop correction without host involvement
• Cabinet-mounted; motor stays standard and replaceable
• Wide power range (24–80 V) for larger motors

Cons:

• Encoder cable must run from motor back to the cabinet alongside power wires — cable management burden increases with axis count
• Step/direction means one signal pair per axis back to the motion controller
• Tuning parameters (PID gains, following-error thresholds) are typically set via DIP switches or a vendor-specific PC tool — not runtime-adjustable over a fieldbus

Best for: Retrofitting existing step/dir machines (CNC routers, plasma cutters, packaging lines) where the motion controller is already wired and you just want to swap drivers for closed-loop reliability. Also a good fit for NEMA 23/24 machines that need higher voltage and current than integrated motor solutions typically provide.

India Availability: Leadshine and JMC drivers are stocked by industrial automation distributors (Robu.in, Robocraze, FactoryMation India). StepperOnline ships internationally but may incur customs delays. Budget clones are available on Amazon India but verify encoder compatibility before purchasing.

---

3. Matched Motor + Driver Kit

What it is: The manufacturer sells a motor and driver as a tested pair, with the encoder pre-mounted and pre-wired at the factory. The driver and motor are tuned together — you don't need to set current limits, PID gains, or encoder resolution; the drive auto-configures from the motor's ID.

Typical hardware:

• JMC iHSS57 / iHSS60 series — integrated drive + NEMA 23/24 motor with step/dir or RS-485 control
• Leadshine Easy Servo series (ES-M / ES-D) — matched NEMA 17–34 motors with closed-loop drivers

Pros:

• Zero tuning — plug in power and step/direction, start moving
• Guaranteed encoder alignment and phase-angle calibration
• Single warranty and support source

Cons:

• Higher per-axis cost than separate driver + generic motor
• Locked into the vendor's motor; can't swap in a different winding or stack length later
• Still cabinet-mounted driver with encoder cable run — same wiring topology as external driver kits

Best for: New machine builds where you want the reliability of closed-loop but don't want to spend engineering time on tuning. Also good for OEMs building machines in volume — the pre-tuned pair reduces assembly and test time.

---

4. Integrated Closed-Loop Motor

What it is: The driver, encoder, and control electronics are built directly into the motor housing. You supply DC power and a communication interface (step/dir, serial, or fieldbus) — no external driver box, no encoder cable to route. The motor is a self-contained motion node.

Typical hardware:

• MKS SERVO42C — NEMA 17 class, serial (UART) control, popular in 3D printing and small automation
• Teknic ClearPath — NEMA 23/34 class, industrial-grade, step/dir or EtherNet/IP, auto-tuning, wide voltage range (24–75 V)
• Oriental Motor AZ Series — NEMA 17–34, EtherCAT / EtherNet/IP / Modbus options, closed-loop with battery-free absolute encoder

Pros:

• Cleanest wiring — one cable for power + communication per motor
• No external driver enclosure needed; saves cabinet space
• Factory-tuned; typically includes auto-tuning routines
• Absolute encoder options available (no homing after power cycle)

Cons:

• Highest per-axis cost among stepper-based solutions
• Motor is proprietary — can't swap in a generic stepper if one fails
• Limited to the vendor's NEMA size and torque offerings
• Heat dissipation constraints: driver electronics share the motor's thermal envelope

Best for: New machine designs with a budget for premium components — semiconductor handling, medical devices, lab automation, and multi-axis robots where cabinet space and wiring simplicity are critical.

India Availability: MKS SERVO42C is available through Robu.in and Amazon India. Teknic ClearPath and Oriental Motor AZ Series are available through authorised industrial distributors (Teknic ships direct from the US; Oriental Motor has India distribution via its Singapore office). Expect 2–4 week lead times for imported integrated motors.

---

5. Motor-Mounted Retrofit Controller

What it is: A compact controller board that mounts directly onto the back of a standard NEMA 17 (or NEMA 23) stepper motor, adding closed-loop control without replacing the motor itself. It combines a stepper driver, encoder interface, and communication MCU into a single PCB that piggybacks on the motor. Control is typically over a fieldbus (CAN Bus, RS-485) rather than step/direction — the controller receives position or velocity commands and handles the control loop locally.

Typical hardware:

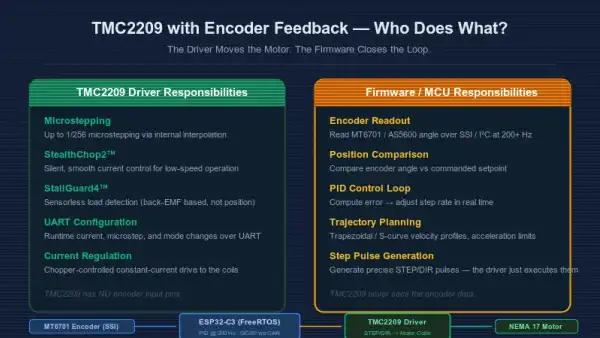

• Grafito CANStepper — NEMA 17 Closed Loop CAN Adapter Board with TMC2209 driver, magnetic encoder feedback, ESP32-C3 MCU, and CAN Bus daisy-chain (GCSP v1 protocol, up to 31 nodes). Also supports USB-C, WiFi, and Bluetooth configuration.
• Mechaduino (open-source) — NEMA 17 retrofit with magnetic encoder and serial/USB control; community-supported firmware
• ODrive S1 / ODrive Pro — NEMA 23 class, FOC control, CAN Bus, designed as a motor-mounted board for brushless motors but also usable with steppers in some configurations

Pros:

• Reuse your existing NEMA 17 motors — no need to buy new motors
• Daisy-chain fieldbus (CAN Bus) drastically reduces wiring versus individual step/dir runs back to a cabinet
• Distributed control: each node runs its own position loop; the host sends high-level commands
• Tuning and diagnostics over the fieldbus or wireless — no DIP switches

Cons:

• Adds mass and length to the motor — check clearance in tight machine designs
• Smaller thermal budget than a cabinet-mounted driver; current capacity is typically lower (2–3 A range)
• Requires a fieldbus-capable host (CAN adapter, RS-485 dongle) — not drop-in compatible with step/dir controllers

Best for: Multi-axis machines where you already own NEMA 17 steppers and want to go closed-loop without rewiring the entire cabinet. Particularly strong for robotic arms, camera sliders, CNC-style gantries, and agricultural automation where clean field wiring and distributed intelligence reduce assembly time and points of failure.

India Availability: CANStepper is designed and assembled by Grafito Innovations (Kerala, India) and available on grafito.in and Amazon India. Mechaduino boards are available through community group buys or PCB fabrication (open-source design files). ODrive ships internationally; check odriverobotics.com for lead times.

---

6. Full Servo Replacement

What it is: Replace the stepper entirely with a brushless DC (BLDC) or AC servo motor. These systems use a permanent-magnet rotor with sinusoidal commutation (FOC — Field-Oriented Control), an encoder (typically 17-bit or higher absolute), and a dedicated servo drive. The drive closes velocity and position loops at kHz rates.

Typical hardware:

• Delta ASDA-A2 / ASDA-B3 — 100 W to 7.5 kW, EtherCAT / CANopen, auto-tuning
• Yaskawa Sigma-7 — 50 W to 15 kW, EtherCAT / MECHATROLINK, industry-standard reliability
• Teknic ClearPath-SD (servo) — integrated servo motor, 75–550 W, step/dir or EtherNet/IP
• ODrive Pro + generic BLDC — open-source FOC drive paired with hobby or industrial BLDC motors

Pros:

• Highest dynamic performance — acceleration, top speed, and position-holding stiffness far exceed steppers
• No resonance or mid-band instability; smooth motion across the entire speed range
• Higher efficiency — BLDC servos run cooler at equivalent torque
• Wide ecosystem of industrial drives with safety features (STO, SS1)

Cons:

• Highest cost — industrial servos with drives start at ₹15,000–20,000 per axis and go up quickly
• Steeper learning curve — tuning servo loops (velocity, position, feed-forward) requires experience
• Larger physical footprint than a stepper of equivalent holding torque
• Overkill for low-speed, low-acceleration applications where a closed-loop stepper already holds position within a few encoder counts

Best for: High-speed pick-and-place, CNC spindles, robotic joint axes requiring high dynamic response, textile machinery, and any application where cycle time is money and the performance ceiling of steppers is a bottleneck. If your machine specification calls for accelerations above 1–2 G or sustained speeds above 3,000 RPM, a servo is the right choice.

---

Decision Flowchart

Use this decision tree to narrow down which architecture fits your project:

START
  │
  ├─ Budget under ₹2,000/axis?
  │     └─ YES → Encoder-Only Monitoring (Section 1)
  │               Accept detection-only; no real-time correction.
  │
  ├─ Already own NEMA 17 motors you want to reuse?
  │     └─ YES → Motor-Mounted Retrofit Controller (Section 5)
  │               CAN Bus or serial daisy-chain. Minimal rewiring.
  │
  ├─ Retrofitting an existing step/dir machine?
  │     └─ YES → External Closed-Loop Driver Kit (Section 2)
  │               Drop-in replacement. Keep your motion controller.
  │
  ├─ Building a new machine and want zero tuning?
  │     ├─ Clean-sheet NEMA 23+ design?
  │     │     └─ YES → Matched Motor+Driver Kit (Section 3)
  │     │               Pre-tuned pair. Factory-calibrated.
  │     │
  │     └─ Premium budget, want cleanest wiring?
  │           └─ YES → Integrated Closed-Loop Motor (Section 4)
  │                     Self-contained. No external driver.
  │
  ├─ Multi-axis robot or distributed machine?
  │     └─ YES → Motor-Mounted Retrofit Controller (Section 5)
  │               CAN Bus daisy-chain reduces wiring complexity.
  │
  └─ Need maximum dynamic performance?
        └─ YES → Full Servo Replacement (Section 6)
                  BLDC/AC servo. Highest speed and acceleration.

---

Quick Reference Table

Prices are approximate Indian market estimates as of mid-2026. Actual costs vary by vendor, volume, and import duties.

---

Further Reading

For a deeper technical comparison — including encoder resolution, control loop bandwidth, fieldbus protocols, and real-world performance data — see our detailed guide:

Closed-Loop Stepper Controller Options: Technical Deep Dive →

---

This article is published by Grafito Innovations to help engineers and machine builders evaluate closed-loop stepper architectures. The architectures and products described represent the broader market; inclusion does not imply endorsement.
